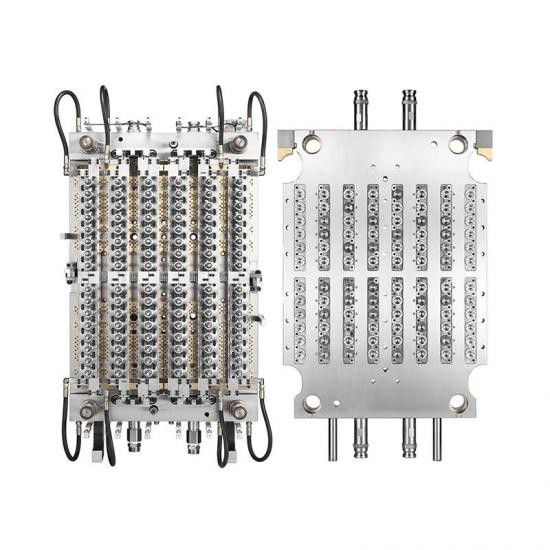

Cold Runner Preform Plastic Injection Mold/CE

The cooling system in injection molding machines is typically referred to as the "cold mold." This system can effectively slow down the rise of the mold temperature, thereby protecting the mold, reducing deformation and internal defects in the injection molded product. In addition, it can effectively control the mold temperature, shorten the injection molding cycle time, and improve production efficiency.

  • Item NO.:

    CH230-96

Cold Runner Preform Plastic Injection Mold



Feature



  1. High-quality imported cold half parts, professional balanced cold half system, and point-to-point PID temperature control ensure product quality stability.
  2. The number of molding cavities ranges from 2 to 144.
  3. good cooling effect,short  molding cycle.
  4. Support customized preform design.

specification



Cavities   Cavity Distribution Pitch / mm NeckFinish
(max.)
H  x  W  x  D(max.)    Weight/ kg
12 UPET130 2x6 75x172 48 800  x  490  x  600 2000
24 4x6 60x120 30 750  x  490  x  600 1700
24 4x6 60x152 38  610  x  730  x  600 1800
32 4x8 60x120 30 850  x  490  x  600  1800
24 UPET230
(UPET300)
4x6 75x172 48 850  x  700  x  680 2500
32 4x8 60x152 38 860  x  610  x  680 2300
48 4x12 50x140 30 980  x  600  x  680 2600
32 UPET300
(UPET400)
4x8 75x172 48 1000  x  700  x  800 3300
48 4x12 60x152 38 1080  x  610  x  800 2800
72 6x12 60x140 38 1120  x  840  x  800 4200
72 6x12 50x140 30 1120  x  900  x  800 4200
48 UPET400 4x12 75x175 48 1300  x  700  x  820 3800
72 6x12 65x160 43 1250  x  1000  x  820 5000
96 6x16 50x140 30 1300  x  850  x  820 5500
48 UPET400H 4x12 75x175 48 1300  x  700  x  820 3800
72 6x12 65x160 43 1250  x  1000  x  820 5000
96 8x12 60x140 38 1250  x  1110  x  820 5500
96 6x16 50x140 30 1230  x  960  x  820 5200
96 6x16 50x155 30 1230  x  1110  x  820 5500
72 UPET500 6x12 75x175 48 1420  x  1100  x  820 6000
96 6x16 65x160 43 1420  x  1100  x  820 6000
128 8x16 60x140 38 1420  x  1250  x  820 6000
144 8x18 50x140 30 1420  x  1250  x  820 6000
